MANHONG Electric Small Motor N20 Micro Motor DC 12V-24V 40mA-55mA 15mm Motor, with Worm, Suitable for Adding Encoder DIY Accessories

Description

• Pure copper wire core rotor: Using precision winding technology, the motor power is increased by 20%.
• -Motor specification: 10 * 12mm (N20 motor)
• -Motor height: 15mm (without output shaft)
• -Output shaft diameter: 1mm
• -Output shaft length: 15mm

Using high hardness steel, good toughness, impact resistance, bearing quality and gear motor life are improved, extremely durable.

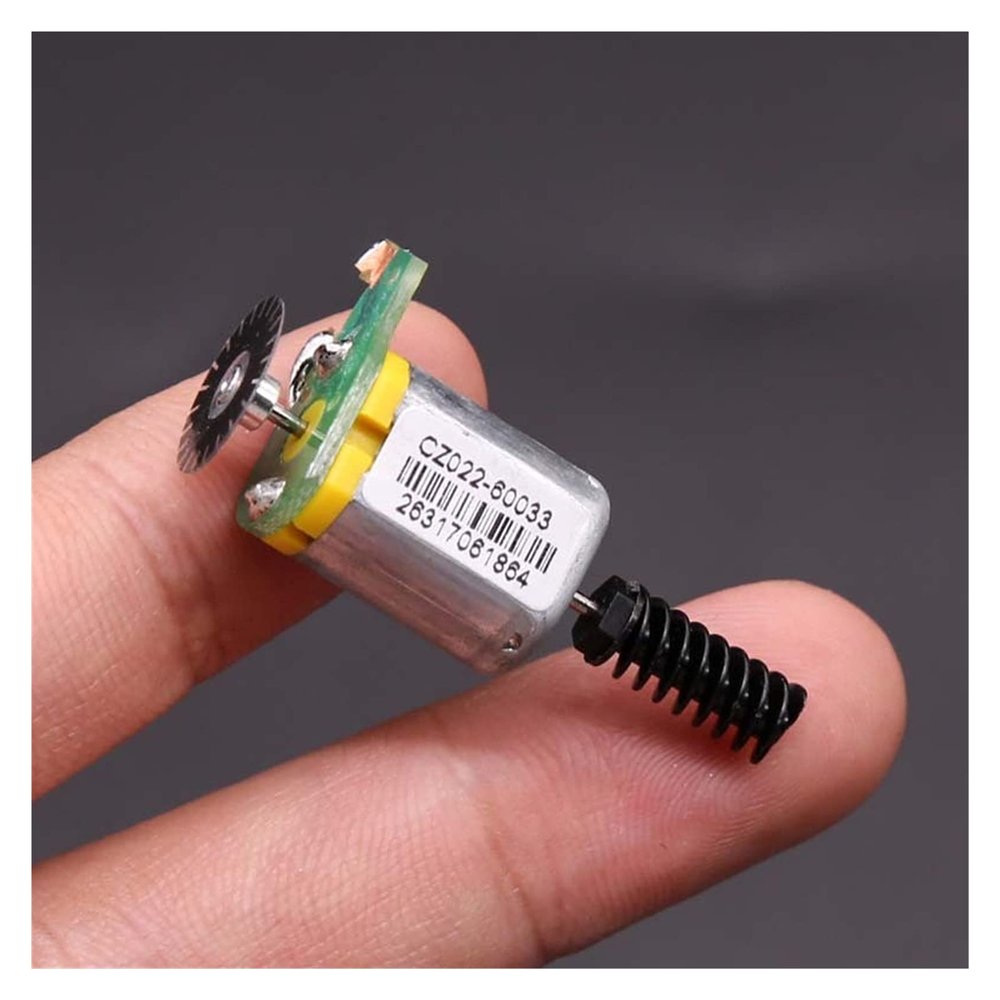

-Exquisitely made (standard) long shaft N20 motor with a plastic worm on the shaft. There is a dial with feedback speed on the back, but for other reasons, the disc will basically fall off. With worm gear motor, optical axis motor, two models are shipped randomly.

-It is estimated that the motor is designed for precision equipment, so this small motor will be equipped with an encoder, and the N20 is a small motor that can be pressurized to DC24V, which is also a kind of magic motor.

-Motor specification: 10 * 12mm (N20 motor)
-Motor height: 15mm (without output shaft)
-Output shaft diameter: 1mm
-Output shaft length: 15mm
-Motor net weight: 6 grams
-Voltage: 12 V, speed: 19300 RPM, current: 40 MA (blocking 326 MA)
Voltage: 18 V, speed: 29000 RPM, current: 45 MA (blocking 460 MA)
Voltage: 24 V, speed: 39600 RPM, current: 55 MA (blocking 600 MA) (the above parameters are measured parameters without a worm.)

-The higher the voltage, the faster the speed, but the higher the power, the greater the current and the easier it is to generate heat. Please decide the voltage to be used according to your own environment.

-This batch of motors is not a strong magnet motor, so the torque is not strong, please understand the buyer's friends.

-There are some flaws in the appearance, but it does not affect the use.

Package includes: Motor x1.
