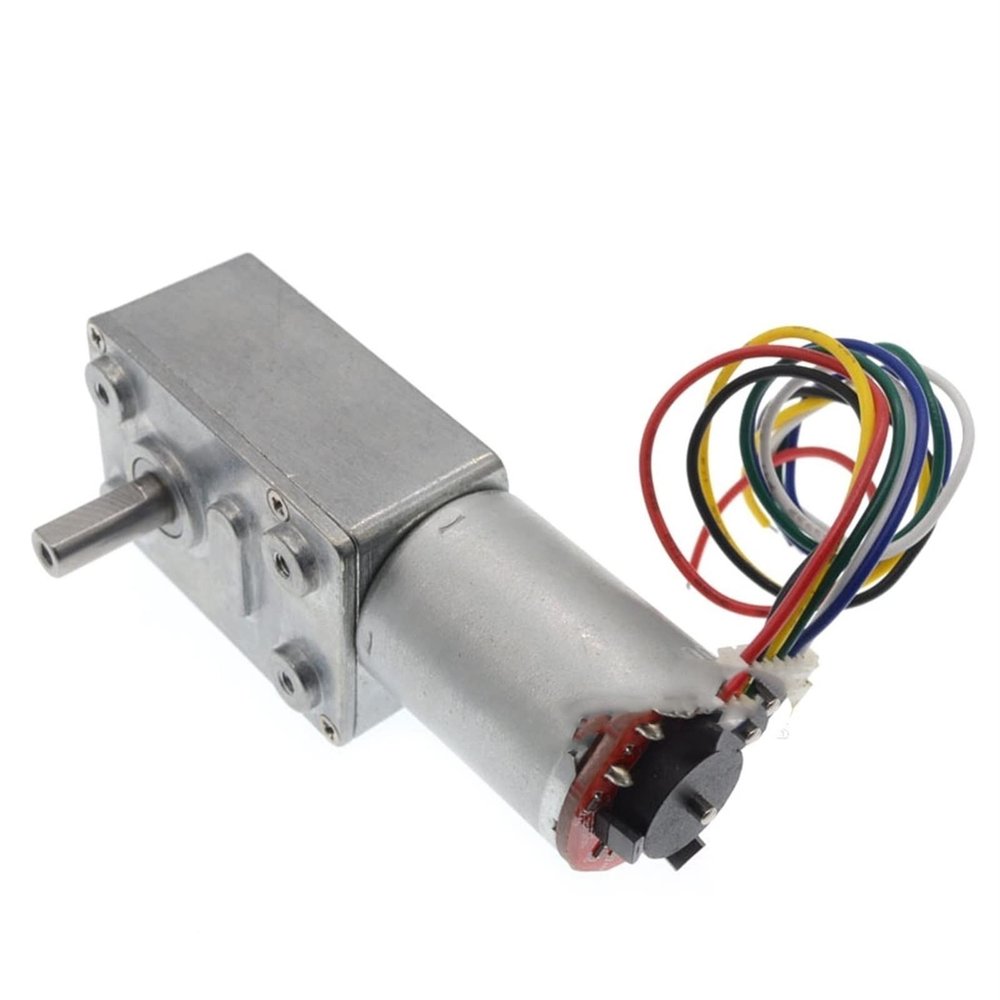

Electric Small Dc Motor JGY370 Wind Turbine Halloween Prop 6v Dc Gear Low RPM Motor with Encoder (Speed : 10rpm, Voltage : 12V)

Description

• Rated voltage: DC6/12/24V; No-load speed: 6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/66rpm/90rpm/150rpm; Rated torque: 1.5-25kg.cm;Rated Current: 0.6/0.6/0.2A
• Motor Size:85x32x24.5mm;Shaft Diameter: 6mm ; Shaft Length: 14mm.
• D SHAPED OUTPUT SHAFT, using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the turbo worm gear motor are improved, extremely durable
• Geared motor is made of hardness steel, sturdy and durable, impact resistance, low noise and large torque.
• Suitable for: Widely used in windows,remote control curtains, miniature a door opener, barbecue grills, ovens, washers, waste disposal machines, coffee machines, printing machines, household appliances, miniature winch and other occasions.

Wiring method:RedMotor power supply+ (replacement can control the forward and reverse rotation of the motor)BlackCoded Power Supply-Negative (Positive and negative levels can not be connected wrongly 3.3-5V)YellowSignal feedback (11 signals for one motor revolution)GreenSignal feedback (11 signals for one revolution of the motor)Blueencoding power + positive (positive and negative levels can not be connected wrongly 3.3-5V)WhiteMotor power supply-(replacement can control the forward and reverse rotation of the motor)incloud: 1 pack Motor with encoder
