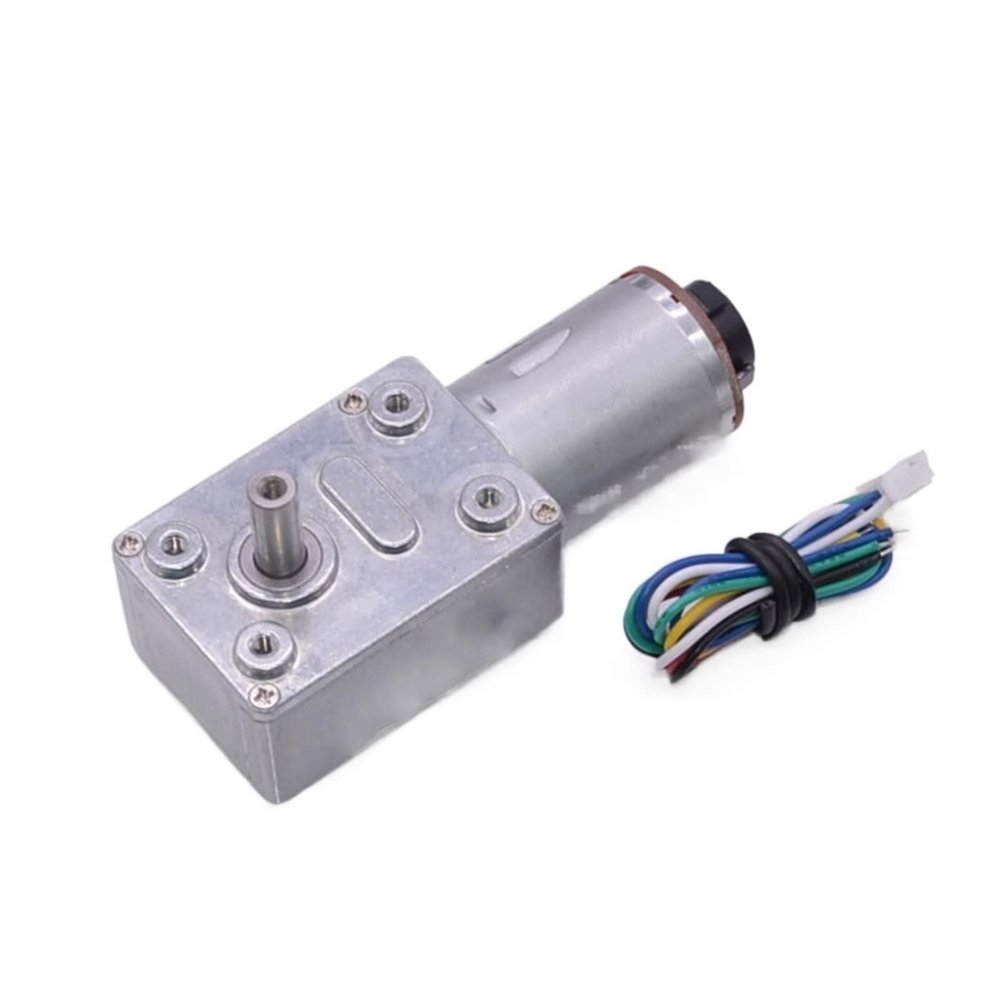

Dc 24v 24 Volt Motor JGY370 Wind Turbine Wheelchair Large Clock Hands and Kit Gate Dc Gear Motor with Encoder (Speed : 210rpm, Voltage : 24V)

Description

• Rated voltage: DC6/12/24V; No-load speed: 6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/66rpm/90rpm/150rpm/210rpm; Rated torque: 0.746-19.44kg.cm; Rated Current: 0.42/0.25/0.15A
• The size of a small motor with high torque and low speed is 85 x 32mm. And the shaft diameter is 6mm, the shaft length is 14mm.
• D SHAPED OUTPUT SHAFT, using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the turbo worm gear motor are improved, extremely durable
• Geared motor is made of hardness steel, sturdy and durable, impact resistance, low noise and large torque.
• Suitable for: Widely used in windows,remote control curtains, miniature a door opener, barbecue grills, ovens, washers, waste disposal machines, coffee machines, printing machines, household appliances, miniature winch and other occasions.

-1-motor power input-pole
-2-GND Encoder power input one
-3-C1 Encoder Phase A
-4-C2 encoder phase B
One 5-3V3 encoder power supply + pole (5V/3.3V)
-6-M2 motor power input + pole
Red motor power + (replacement can control the forward and reverse rotation of the motor)
Black One Coded Power Supply - Negative (The positive and negative levels cannot be wrongly connected to 3.3-5V)
YellowSignal feedback (11 signals per motor revolution)
Green signal feedback (11 signals per motor revolution)
Blue coding power + positive (positive and negative levels can not be wrongly connected 3.3-5V)
White motor power - (replacement can control the forward and reverse rotation of the motor)
incloud: 1 pack Motor with encoder
