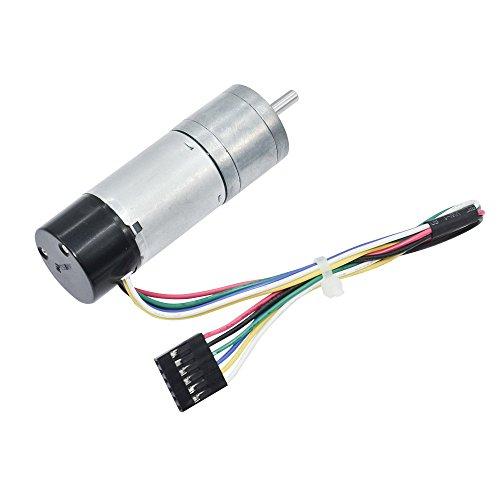

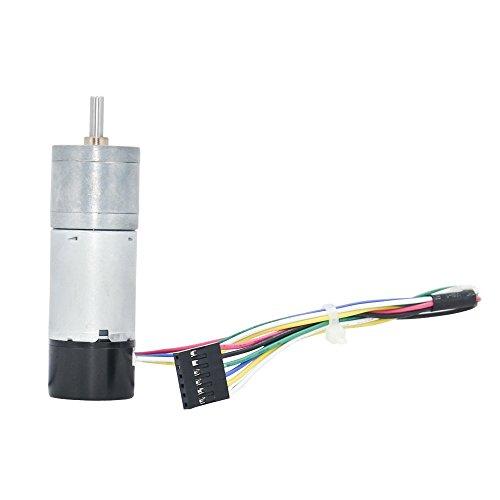

Azssmuk Metal DC Gear Motor 24V 130RPM with Encoder for Robotics,RC Car Model,Custom Servo, Arduino and 3D Printers,DIY Engine Toy

This is a DC Gear motor with Quadrature Encoder, Suit for Projects Such as Robotics,RC Car Model,Custom Servo, Arduino and 3D Printers,DIY Engine Toy.

The rear of the motor is equipped with a dual channel Holzer effect encoder, AB dual output, single circuit per cycle pulse 12PPR, double down the road, a total output of 48CPR. Phase difference 90 degrees.

The two-channel Hall effect encoder is used to sense the rotation of a magnetic disk on a rear protrusion of the motor shaft. The quadrature encoder provides a resolution of 48counts per revolution of the motor shaft. To compute the counts per revolution of the gearbox output, multiply the gear ratio by 48.

Specifications:
Product type: DC Gear motor with two-channel Hall effect encoder
Rated Voltage: 24V
No-Load Speed: 130RPM
No-Load Current: 0.15A
Rated Torque: 1.5kg.cm
Main Body Dimensions:68.8 x 25mm / 2.71in x 0.99in (L*D)
Out Shaft Dimensions: 11 x 4mm / 0.433 x 0.1575in (L*D) with 10 x 0.5mm / 0.39 * 0.017inches flat cut off
Package Listing: 1PCS x DC Geared Motor

Single Output 540 Pulses Per Revolution:
Gear Reduction Ratio: 1/45
Each Loop Output Pulses: 12PPR 45*12=540PPR

Wiring Diagram:
- Red - Motor power terminal +
- Black - Motor power terminal -
- Green - Quad encoder Ground
- Blue - Quad encoder +5V Vcc
- Yellow - Quad encoder A signal
- White - Quad encoder B signal

Sweet Tips:
1.Be sure to keep the wiring connection correct before Working;
2.Be sure to keep the motor stopped before change the CCW/CW direction; Or the motor will be burned!!!
