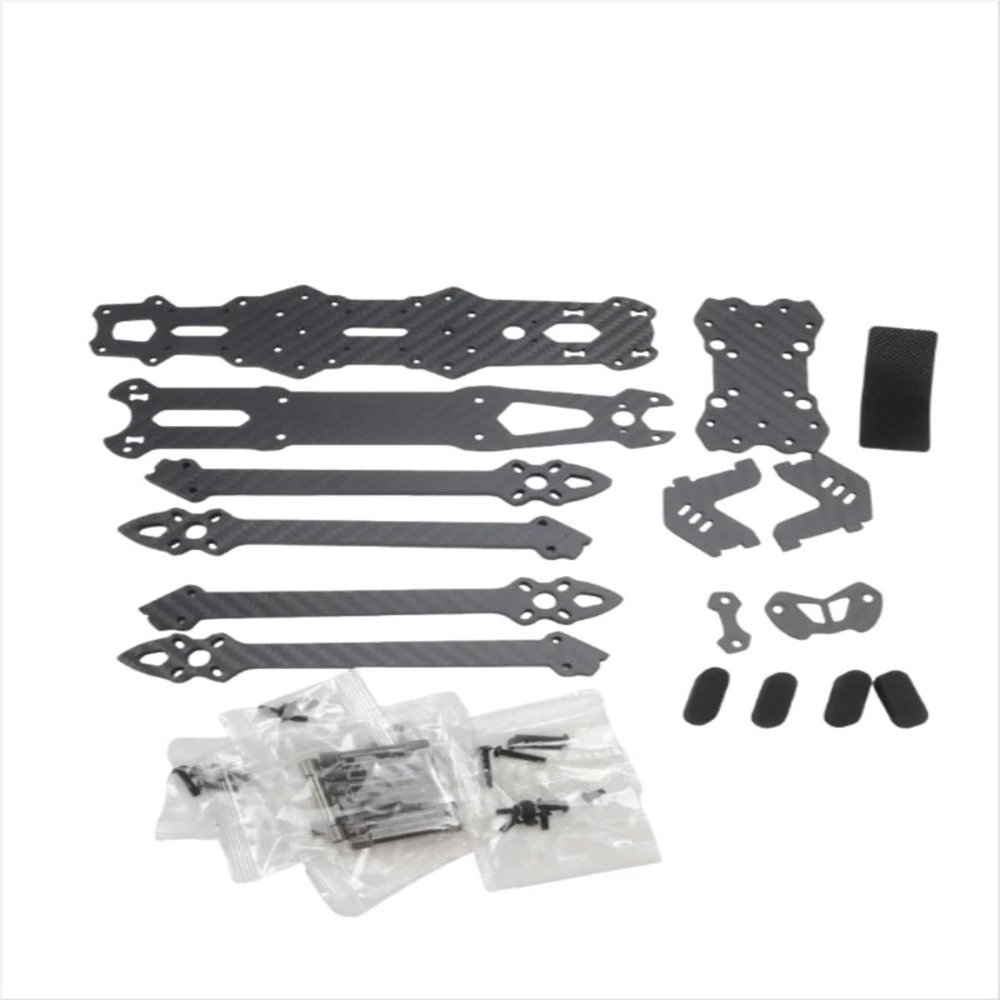

7-inch/8-inch/9-inch/10-inch 3K All-Carbon Fiber Lightweight FPV Racing Drones distintivo(7inch mark4 V2 Rack)

Description

• Model: MAK4 V2 7inch:
• Frame structure: X-Type
• Wheelbase: 295mm
• Size: 230.35mm * 278.52mm
• Bottom plate thickness: 3.0mm
• Improve performance, with high strength and durability.

Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 305305mm
Flight control installation hole spacing: 20*20mm & 305305mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 1919mm
Model MAK4 V2 8inch
Wheelbase 367mm
Weight: about 214g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 305305mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 1919mm
Model MAK4 V2 9inch
Wheelbase 387mm
Weight: about 220g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 305305mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 1919mm
Model MAK4 V2 10inch
Wheelbase 427mm
Weight: about 227g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 305305mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 1919mm
Mejorar la eficiencia.
Tiene buena compatibilidad y estabilidad. Herramientas fiables: piezas de repuesto fiables.
